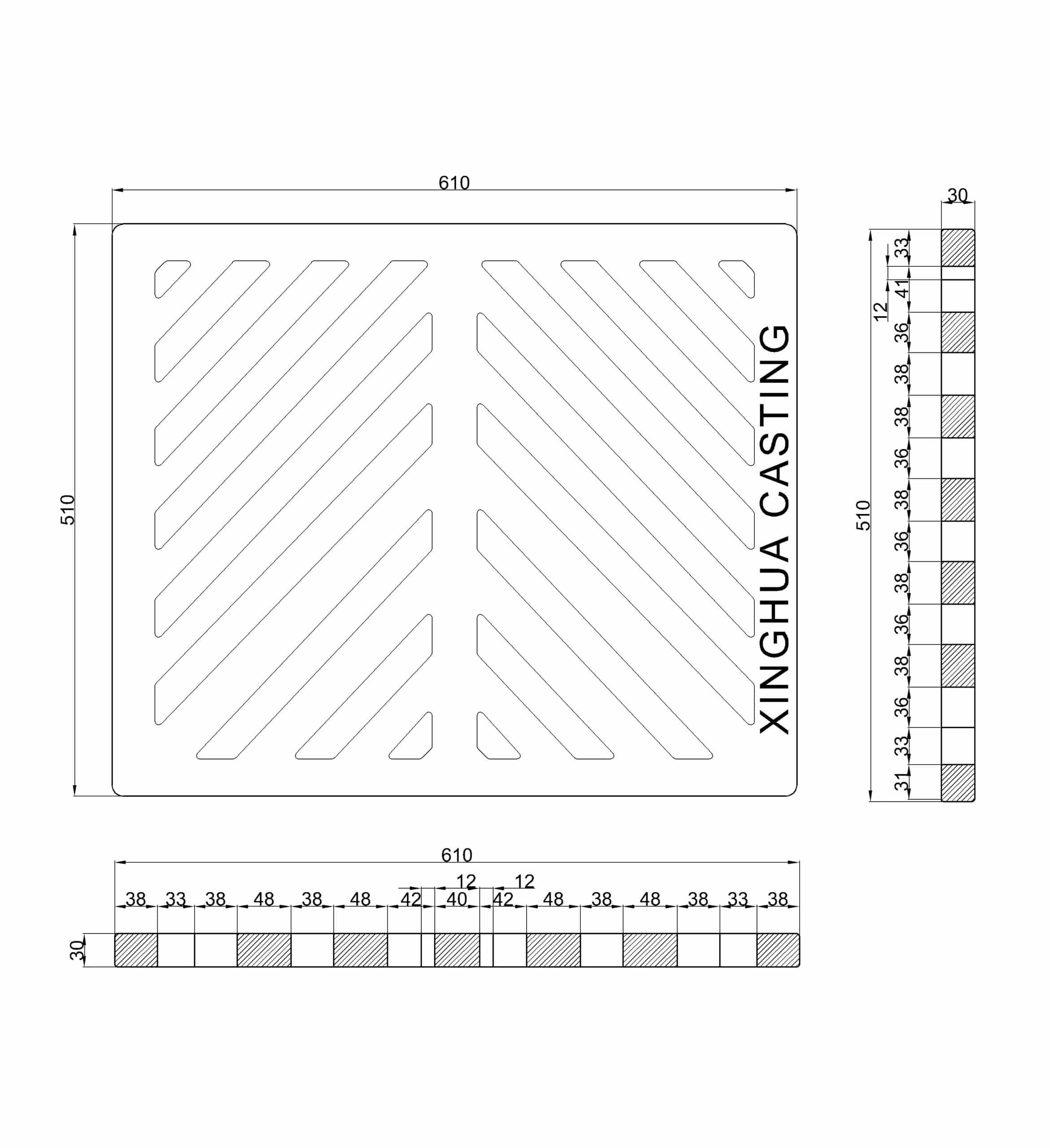

610*510(mm)Herringbone Grate,Unbolted,Heavy Duty
Product Model：
XH GG30010
D400 Grates 610mm*510mm clear opening with 75mm depth
FEATURES:
- Manufactured to BS EN 124 class D400
- Anti-theft design
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Customized logo and text
Applications | Heavily trafficked carriageways and commercial/industrial areas, Highway |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | D400 |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 610mm x 510mm |
|---|---|
Grate Thickness | 75mm |
You need to log in to display our CAD file downloads.
