Φ970(mm)Round Manhole Cover,Tall Bolted ,Black Asphaltic Coated
Product Model：
XH RC20004

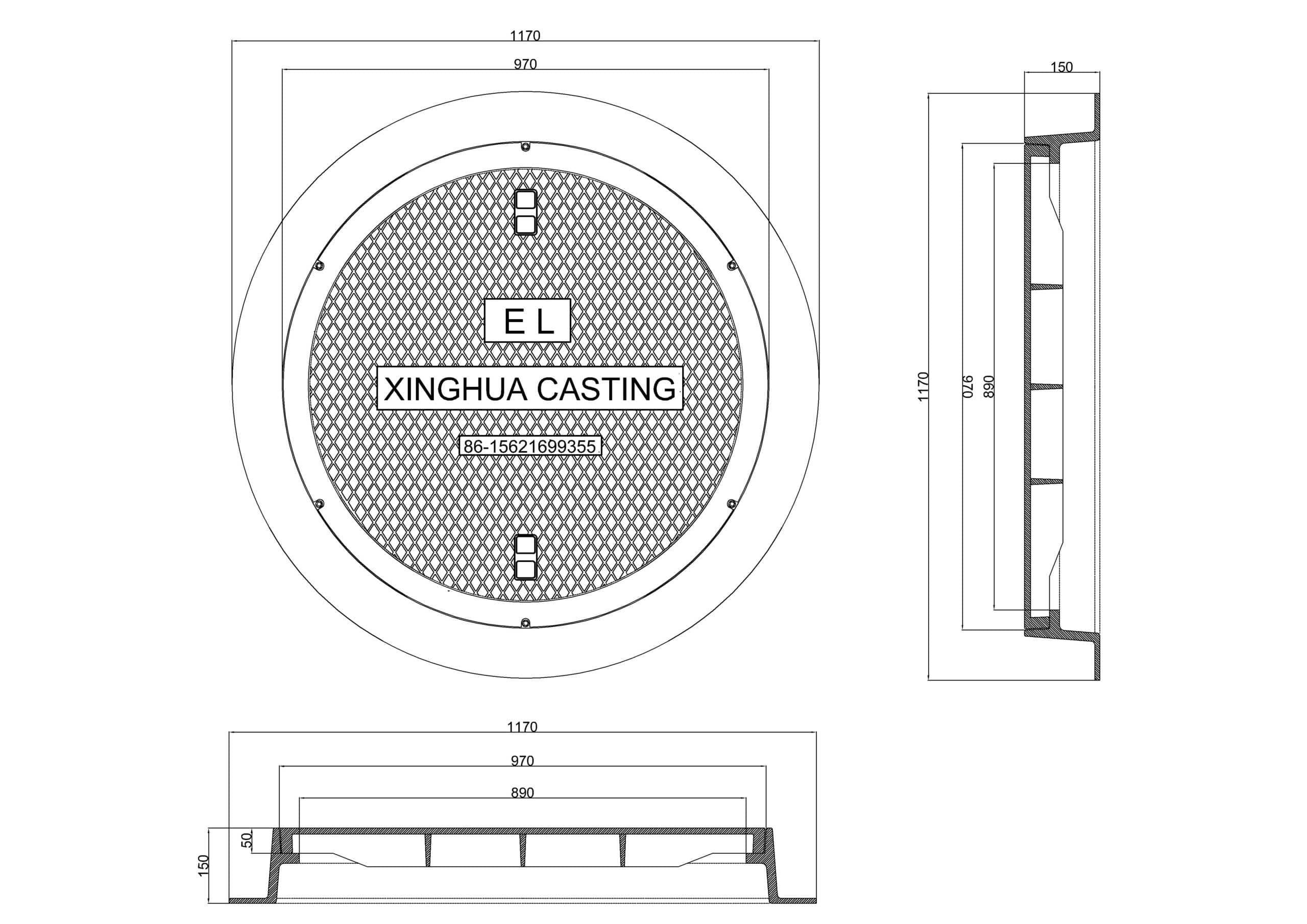

E600 circular/round manhole cover 970mm diameter clear opening with 150mm frame depth
FEATURES:
- Manufactured to BS EN 124 class E600
- BSI Kitemarked for third party assurance of quality
- Full single seal gives airtight seal when filled with grease
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Badging e.g. FW, SW
- Safety Grids
- Moly Sealing Grease
Applications | ports,airports,Highway |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | E600 |
Cover Style | Solid Top |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | Φ1170mm |
|---|---|
Clear Opening | Φ970mm |
Frame Depth | 150mm |
