675*675(mm)Rectangular manhole cover
Product Model：
XH DT00001

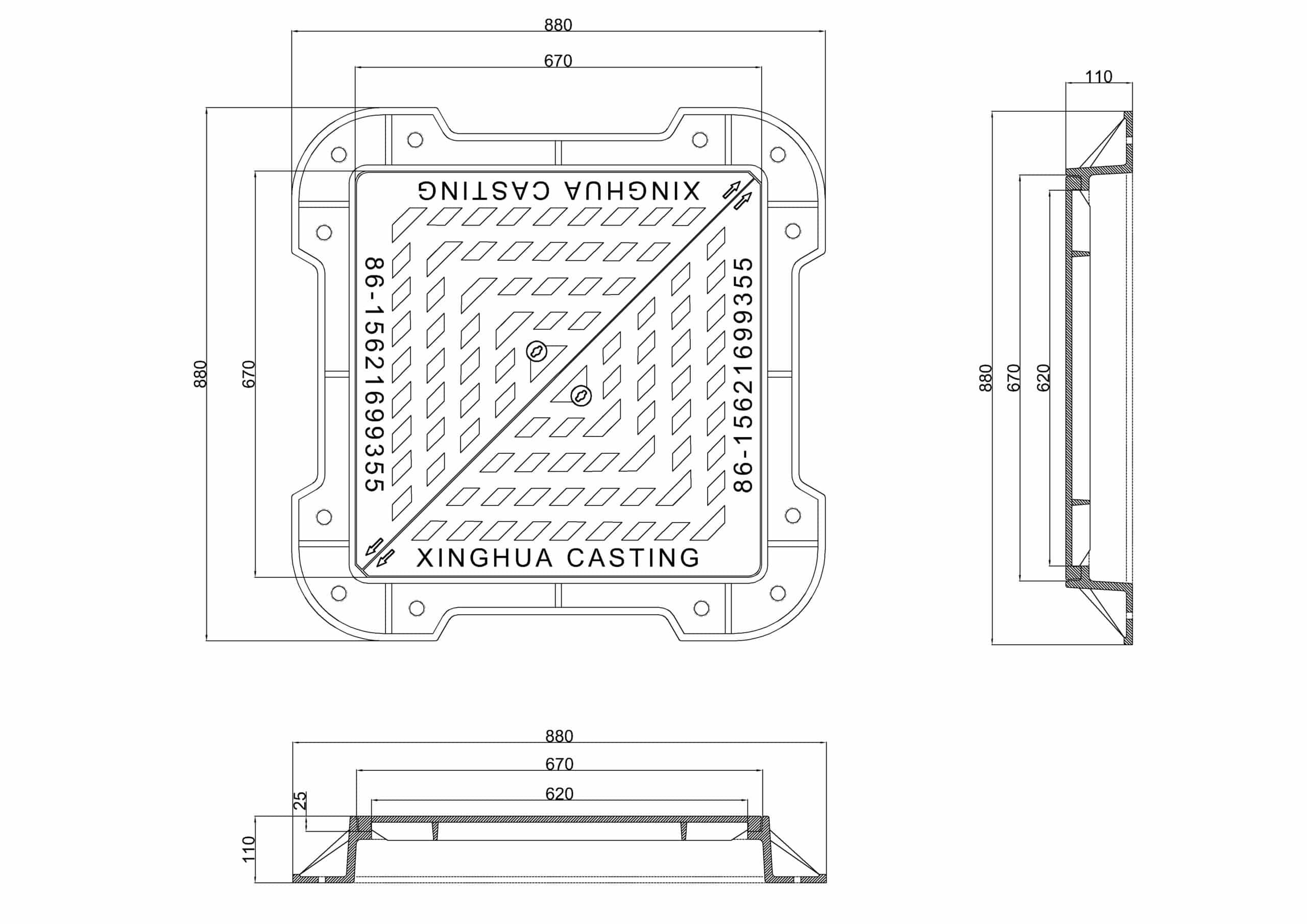

D400 manhole cover 675mm* 675mm clear opening with 110mm frame depth
FEATURES:
- Manufactured to BS EN 124 class D400
- BSI Kitemarked for third party assurance of quality
- Full single seal gives airtight seal when filled with grease
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black Asphaltic coated
OPTIONS:
- Standard Locking
- High Security Locking
- Badging e.g. FW, SW
- Safety Grids
- Moly Sealing Grease
Applications | Heavily trafficked carriageways and commercial/industrial areas |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | D400 |
Cover Style | Solid,Double Triangular |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint. |
External Dimensions | 885mm x 885 mm |
|---|---|
Clear Opening | 675mm x 675mm |
Frame Depth | 110mm |
You need to log in to display our CAD file downloads.
