685*610(mm)Drainage Trench Grate for Bolting,Heavy Duty
Product Model：
XH GG30039

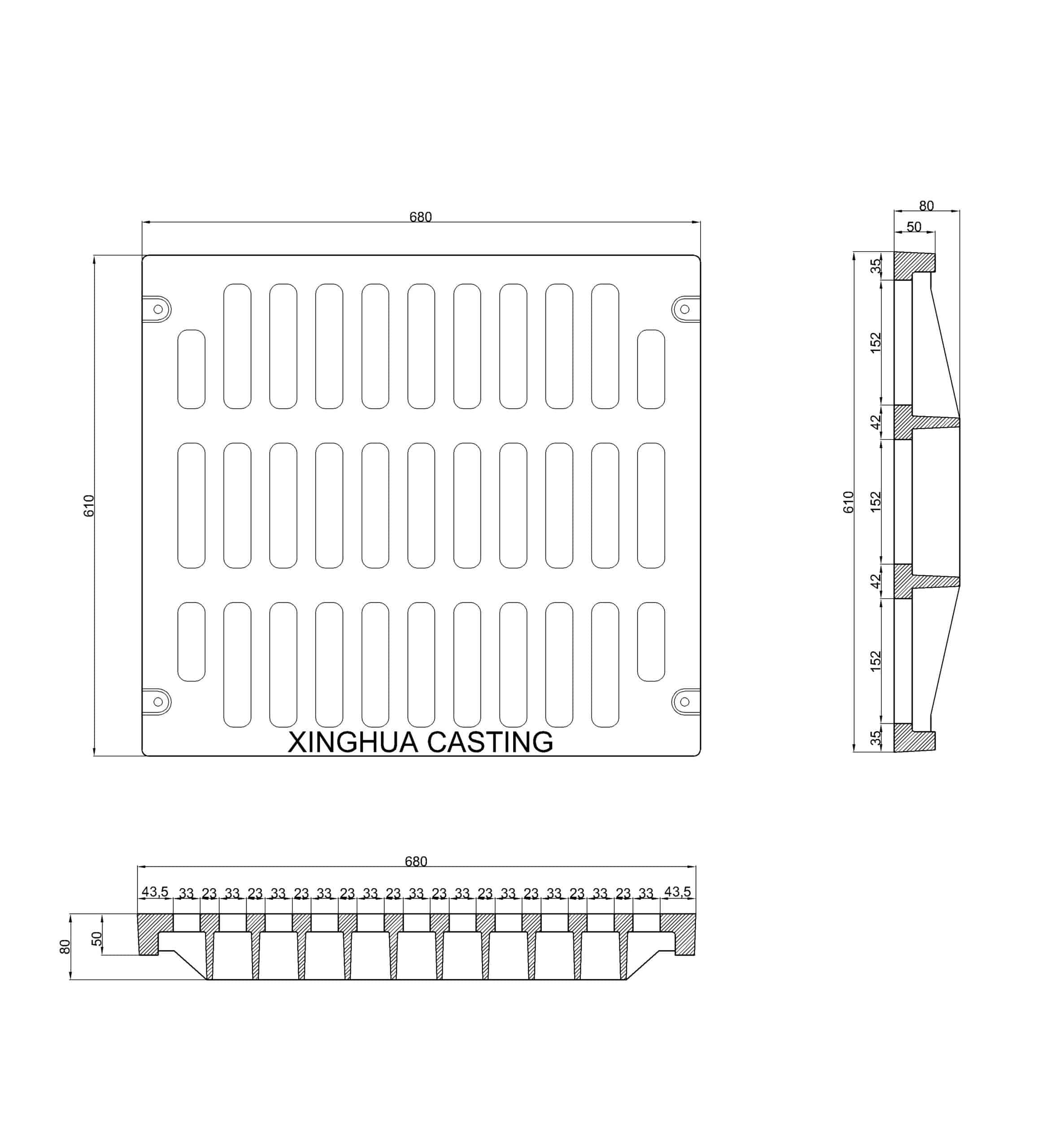

D400 Grates 685mm*610mm clear opening with 50mm depth
FEATURES:
- Manufactured to BS EN 124 class D400
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
- Customized logo and text
Applications | Heavily trafficked carriageways and commercial/industrial areas, Highway |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | D400 |
Grate Style | Bar, Flat |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 685mm x 610mm |
|---|---|
Grate Thickness | 50mm |
You need to log in to display our CAD file downloads.
