900*590(mm)Diagonal Curb Inlet Grate,Black Asphaltic Coated
Product Model：
XH GG30026

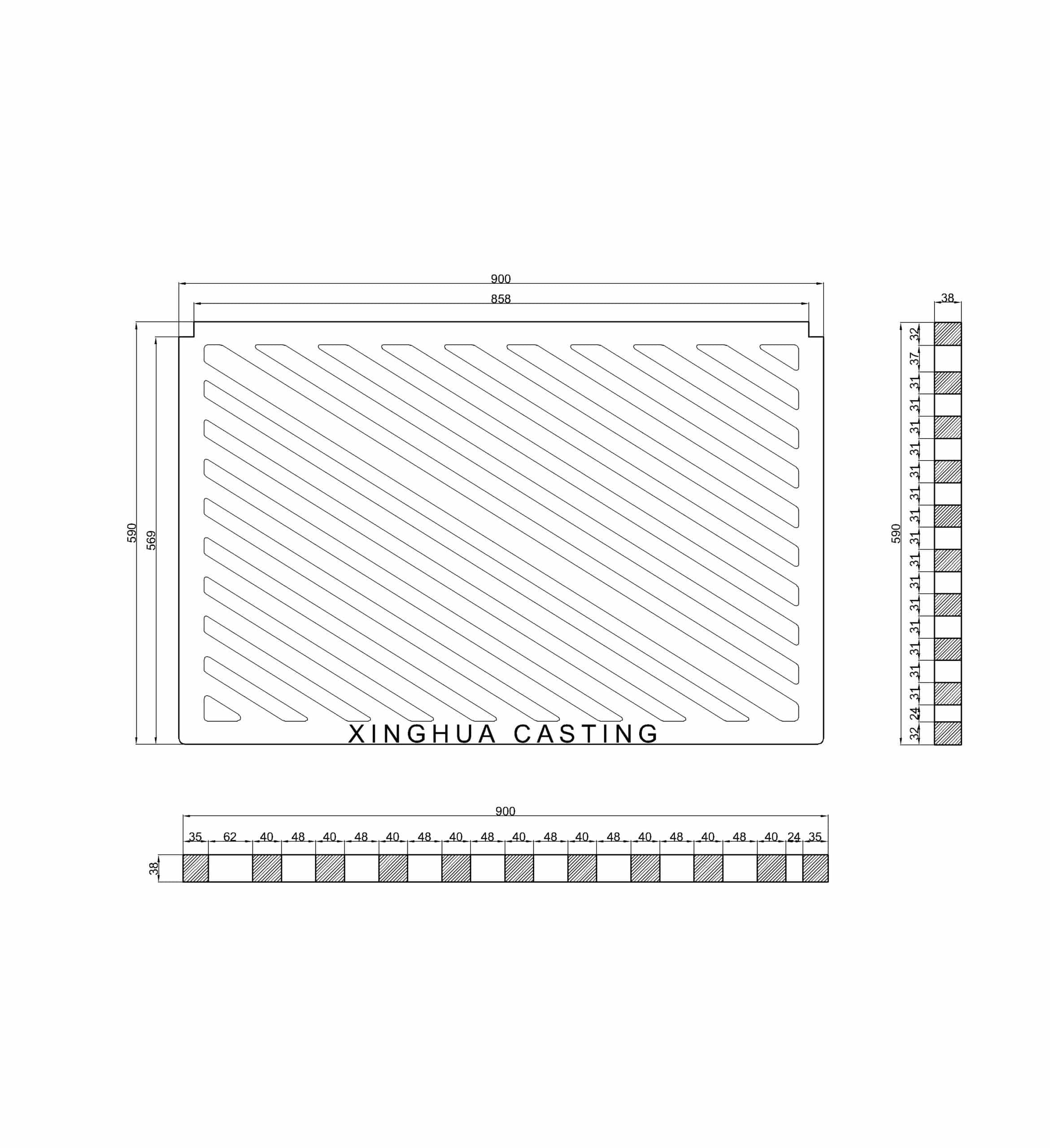

D400 Grates 900mm*590mm clear opening with 38mm depth
FEATURES:
- Manufactured to BS EN 124 class D400
- Anti-theft design
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Customized logo and text
|
Applications
|
Heavily trafficked carriageways and commercial/industrial areas,Highway
|
|---|---|
|
Accreditation
|
BS EN124-2:2015
|
|
Loading
|
D400
|
|
Material
|
Ductile Iron
|
|
Coating
|
black anticorrosive asphalt paint
|
|
External Dimensions
|
900mm x 590mm
|
|---|---|
|
Grate Thickness
|
38mm
|
You need to log in to display our CAD file downloads.
