810*810(mm)Rectangular Manhole Cover&Frame,Hex Bolting,Bottom Flange
Product Model：
XH RE00001

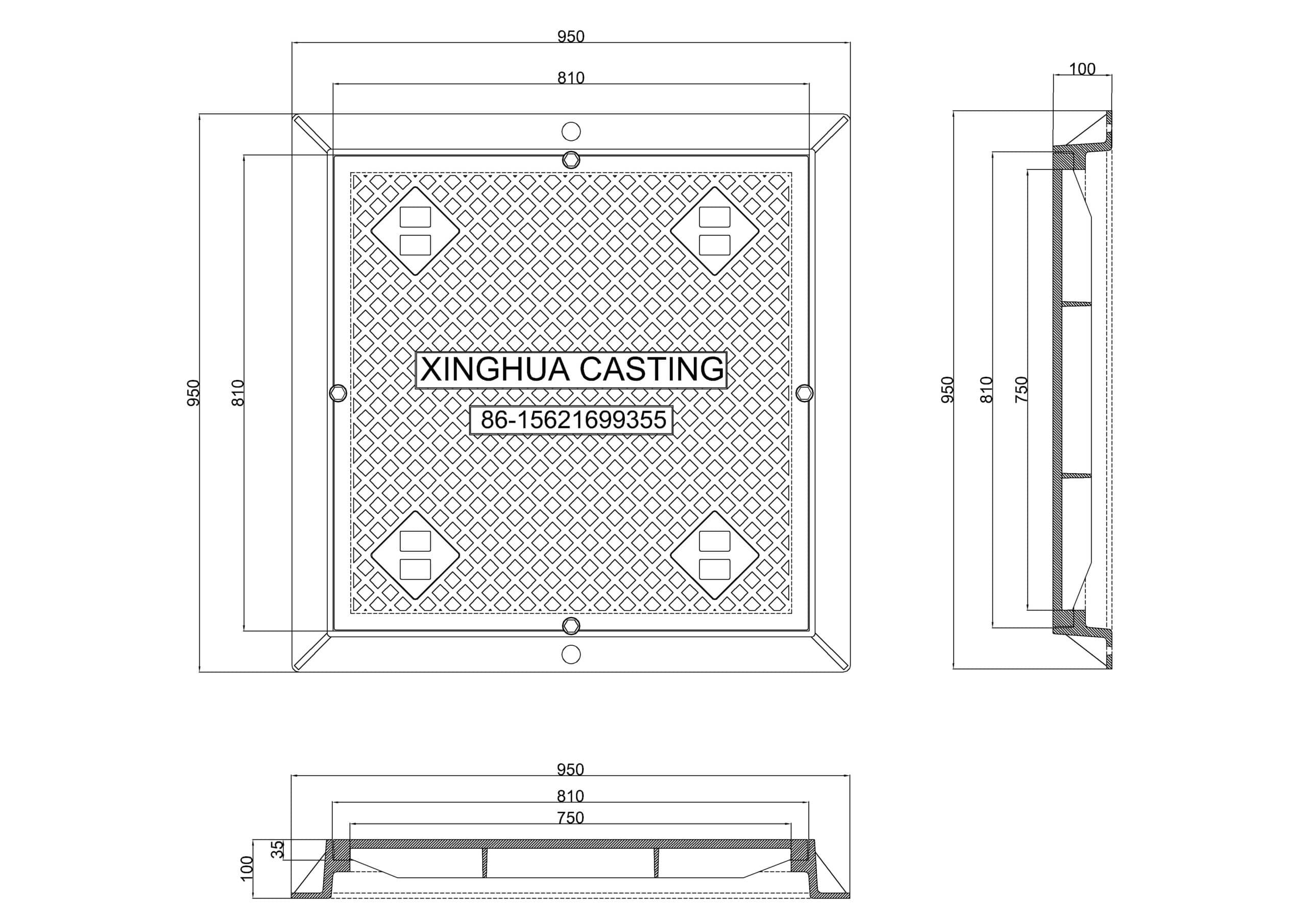

D400 manhole cover 810mm x 810mm clear opening with 100mm frame depth
FEATURES:
- Manufactured to BS EN 124 class D400
- BSI Kitemarked for third party assurance of quality
- Full single seal gives airtight seal when filled with grease
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Badging e.g. FW, SW
- Safety Grids
- Moly Sealing Grease
Applications | Heavily trafficked carriageways and commercial/industrial areas, Highway |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | D400 |
Cover Style | Rectangular Solid Top |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 950mm x 950mm |
|---|---|
Clear Opening | 810mm x 810mm |
Frame Depth | 100mm |
You need to log in to display our CAD file downloads.
