2445*890(mm)Gully Grates,Bolted 4 Grate,Extra Heavy Duty,Black Asphaltic Coated
Product Model：
XH GG30003

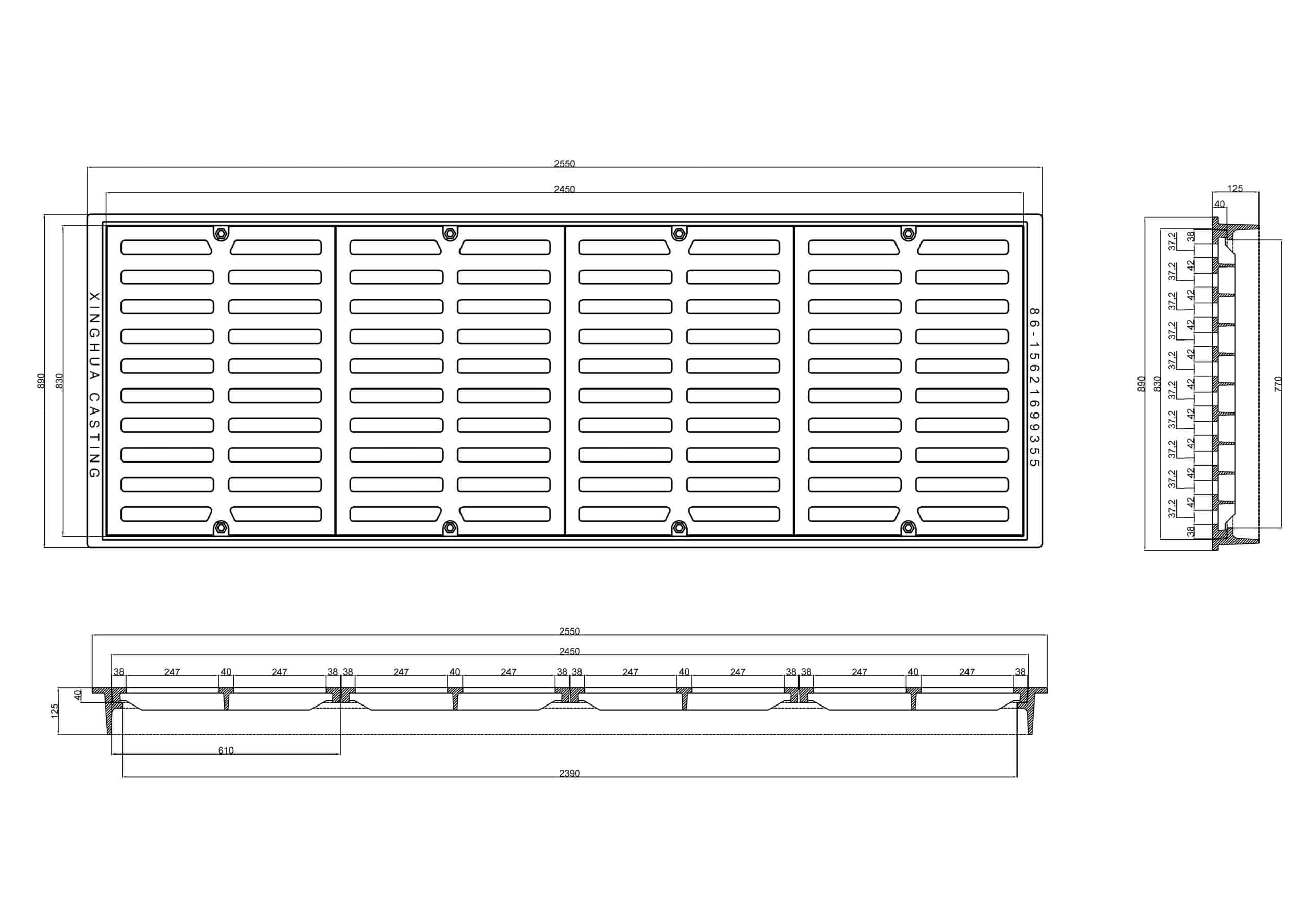

E600 Gully Grates 2445mm*890mm clear opening with 125mm frame depth
FEATURES:
- Manufactured to BS EN 124 class E600
- Anti-theft design
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Each grate is bolted with two HEX head stainless steel bolts washers.
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Customized logo and text
Applications | Ports + Docks |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | E600 |
Grate Style | Bar, Flat |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 2565mm x 975mm |
|---|---|
Clear Opening | 2445mm x 890mm |
Frame Depth | 125mm |
You need to log in to display our CAD file downloads.
