605*430(mm)Drainage Trench Grate, Heavy Duty
Product Model：
XH GG30036

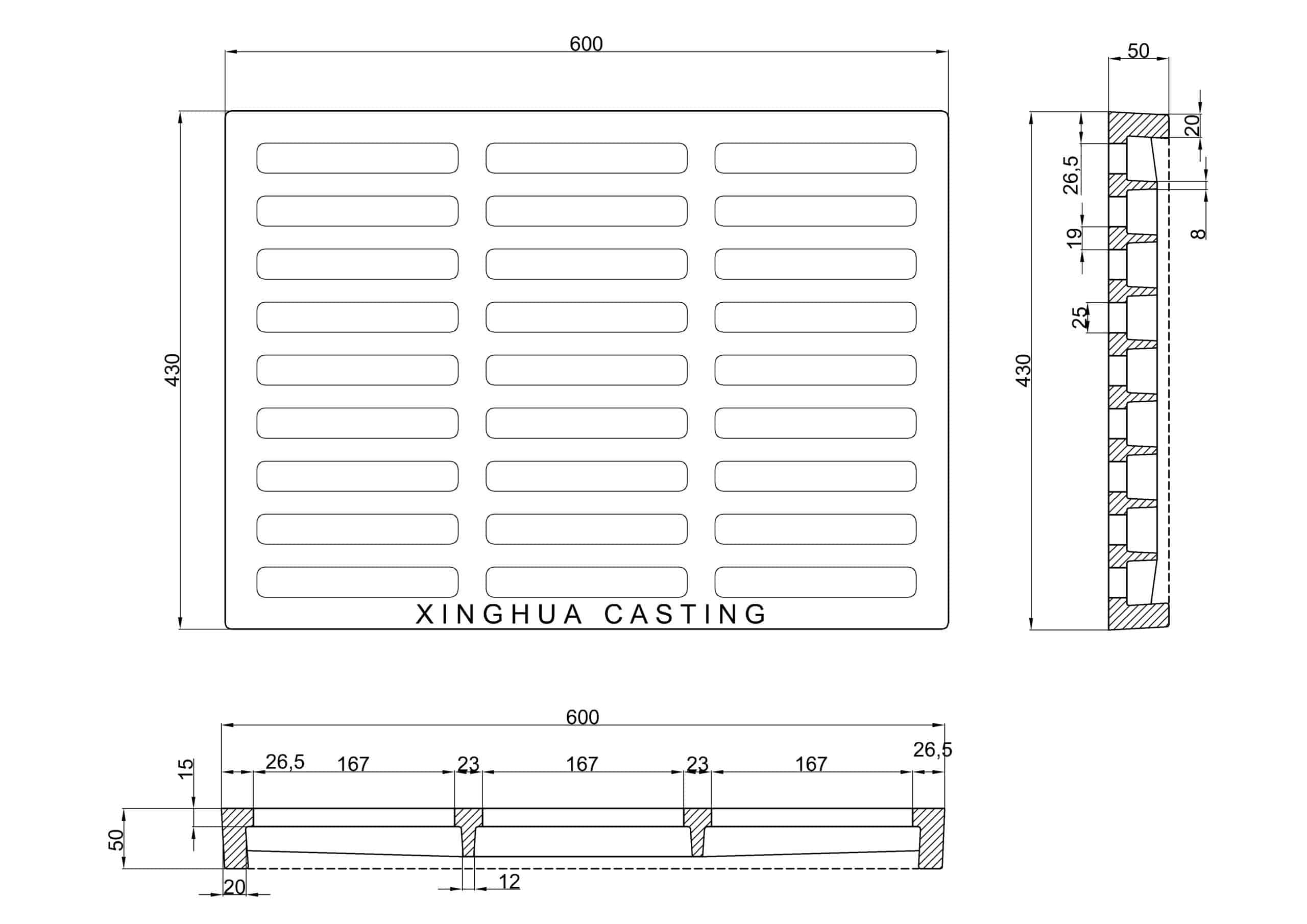

D400 Grates 605mm*430mm clear opening with 50mm depth FEATURES:
- Manufactured to BS EN 124 class D400
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
- Customized logo and text
Applications | Heavily trafficked carriageways and commercial/industrial areas,Highway |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | D400 |
Grate Style | Bar, Flat |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 605mm x 430mm |
|---|---|
Grate Thickness | 50mm |
You need to log in to display our CAD file downloads.
