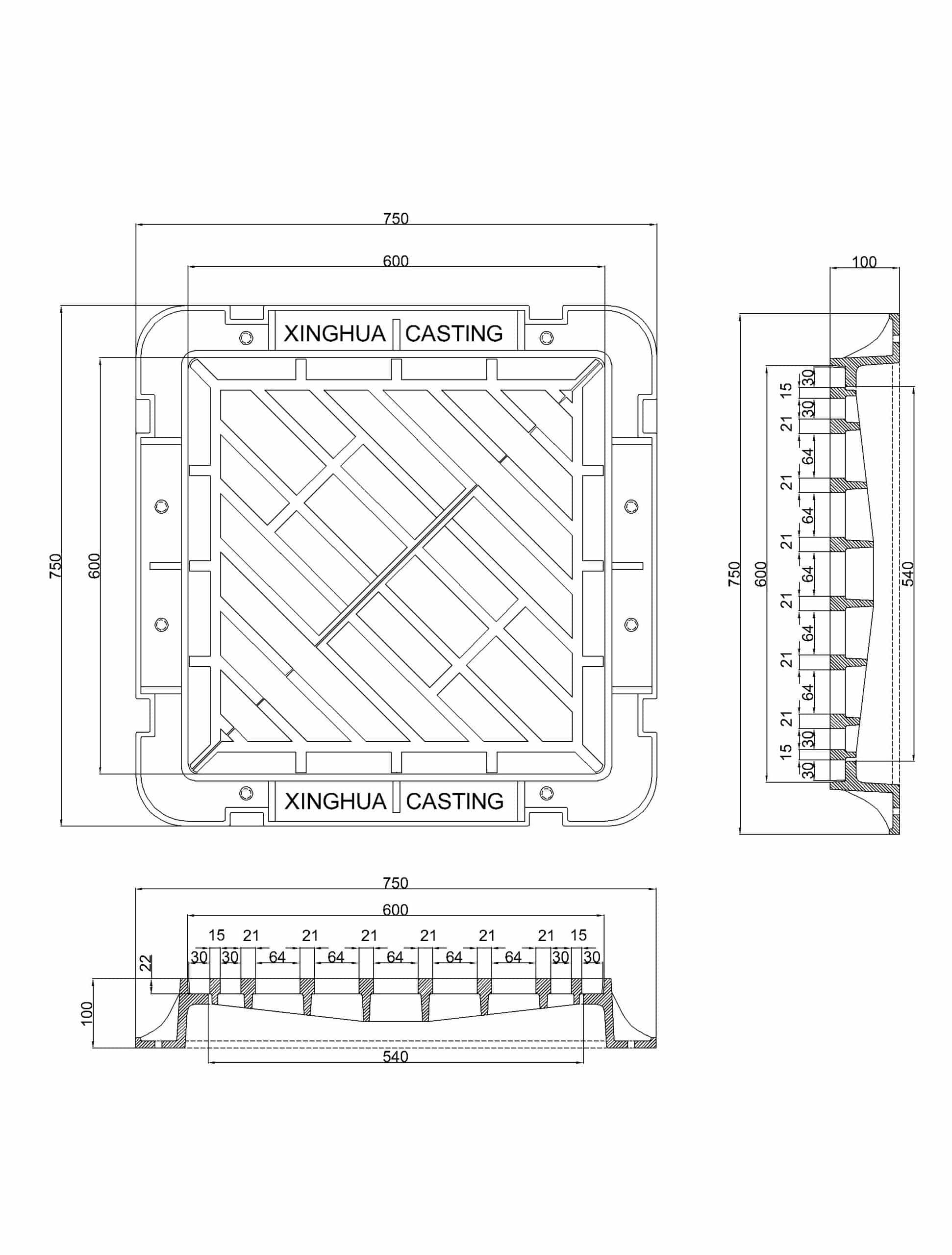

600*600(mm)Gully Grates,Bolt-on Frame
Product Model：
XH GG30022
D400 Gully Grates 600mm*600mm clear opening with 100mm frame depth
FEATURES:
- Manufactured to BS EN 124 class D400
- Anti-theft design
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Customized logo and text
|
Applications
|
Heavily trafficked carriageways and commercial/industrial areas, Highwayt
|
|---|---|
|
Accreditation
|
BS EN124-2:2015
|
|
Loading
|
D400
|
|
Grate Style
|
Bar, Flat
|
|
Material
|
Ductile Iron
|
|
Coating
|
black anticorrosive asphalt paint
|
|
External Dimensions
|
750mm x 750mm
|
|---|---|
|
Clear Opening
|
600mm x 600mm
|
|
Frame Depth
|
100mm
|
|
Weight:
|
68Kg
|
