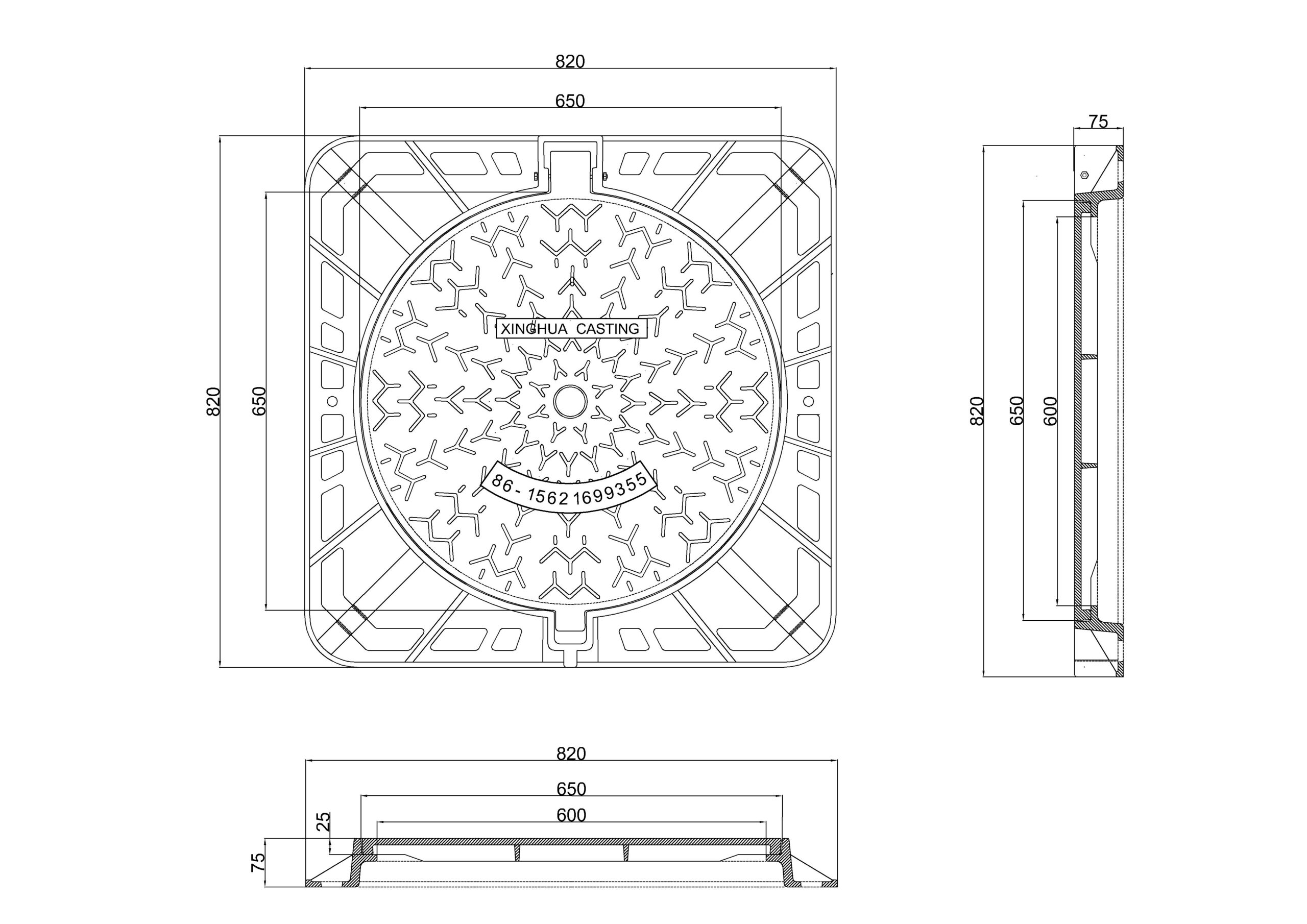

Φ648(mm)Manhole Cover,Square Frame
Product Model：
XH SR10003
C250 square to round manhole cover 648mm diameter clear opening with 75mm frame depth
FEATURES:
- Manufactured to BS EN 124 class C250
- BSI Kitemarked for third party assurance of quality
- Full single seal gives airtight seal when filled with grease
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Badging e.g. FW, SW
- Safety Grids
- Moly Sealing Grease
Applications | Estate Roads, Delivery Areas, Car Parks |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | C250 |
Cover Style | Solid Top |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 815mm x 815mm |
|---|---|
Clear Opening | Φ648mm |
Frame Depth | 75mm |
Weight: | 60Kg |
