302*302(mm)Gully Grates,Dished Grating,Captive Hinge
Product Model：
XH GG30028

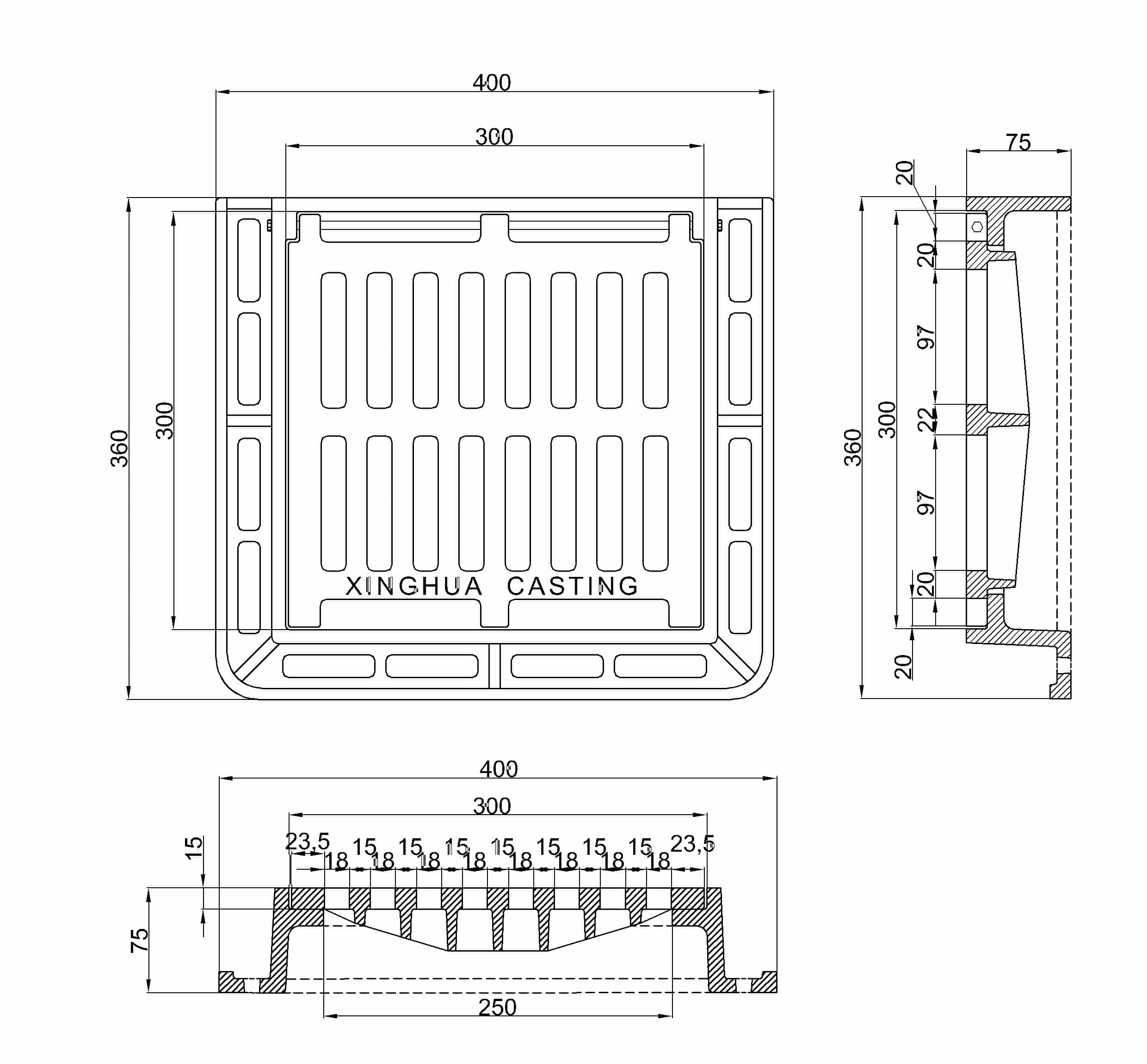

C250 Gully Grates 302mm*302mm clear opening with 75mm frame depth
FEATURES:
- Manufactured to BS EN 124 class C250
- Anti-theft design
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Customized logo and text
Applications | Estate Roads, Delivery Areas, Car Parks |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | C250 |
Grate Style | Bar, Flat |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 400mm x 362mm |
|---|---|
Clear Opening | 302mm x 302mm |
Frame Depth | 75mm |
Weight: | 13Kg |
You need to log in to display our CAD file downloads.
