Φ600(mm) Square to Round Manhole Covers,Key Holes,Black Coated
Product Model：
XH SR10002

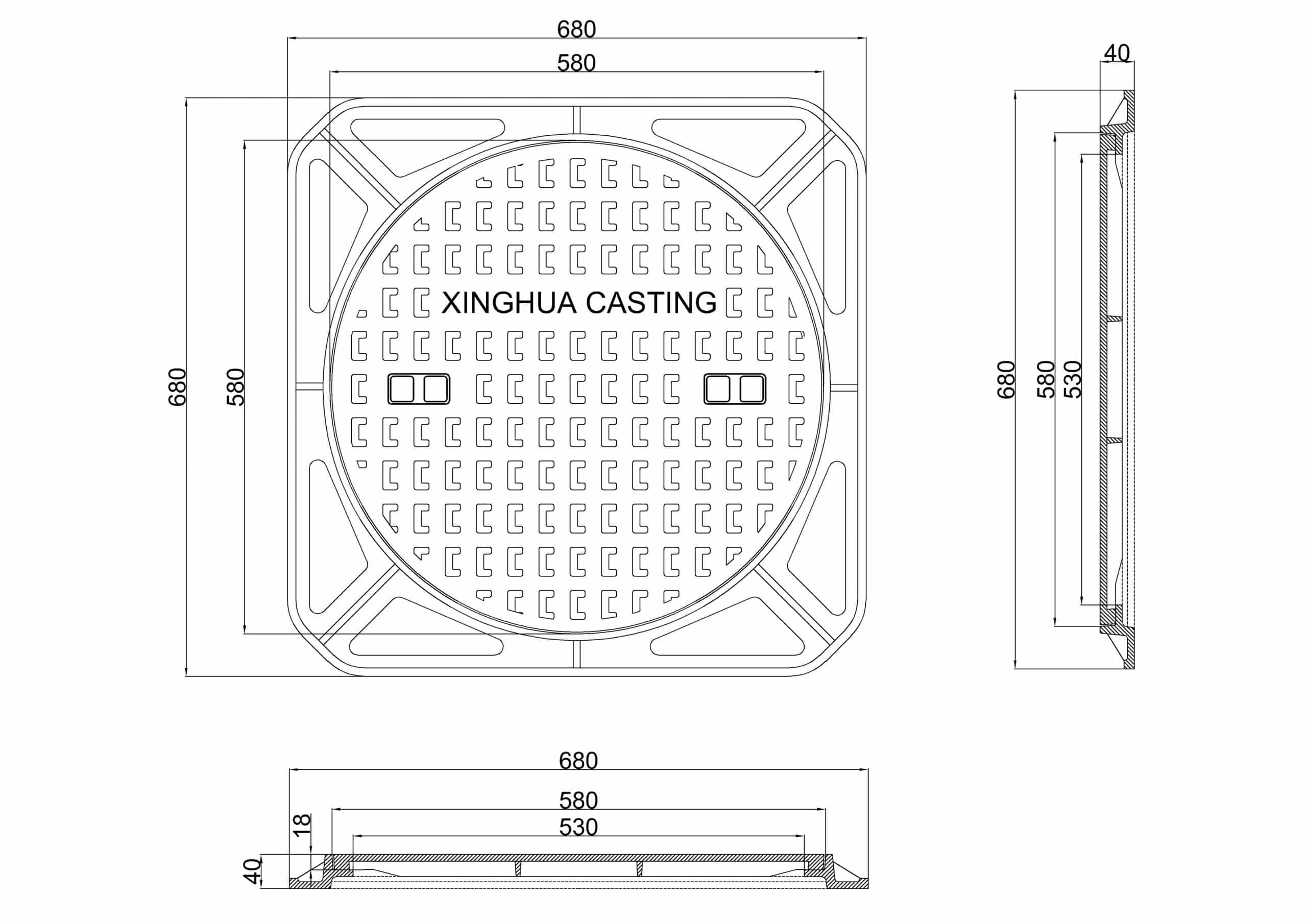

B125 square to round manhole cover 600mm diameter clear opening with 40mm frame depth
FEATURES:
- Manufactured to BS EN 124 class B 125
- BSI Kitemarked for third party assurance of quality
- Full single seal gives airtight seal when filled with grease
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
- Integral Lifting key Holes
- Skeletal frame
OPTIONS:
- Standard Locking
- High Security Locking
- Badging e.g. FW, SW
- Safety Grids
- Moly Sealing Grease
Applications | Driveway, Pavement |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | B125 |
Cover Style | Solid Top,Skeletal frame |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 680 (L) x 680 (W) |
|---|---|
Clear Opening | Φ600mm |
Frame Depth | 40mm |
Weight: | 32Kg |
You need to log in to display our CAD file downloads.
