610*305(mm)Trench Grate, Heavy Duty
Product Model：
XH GG30043

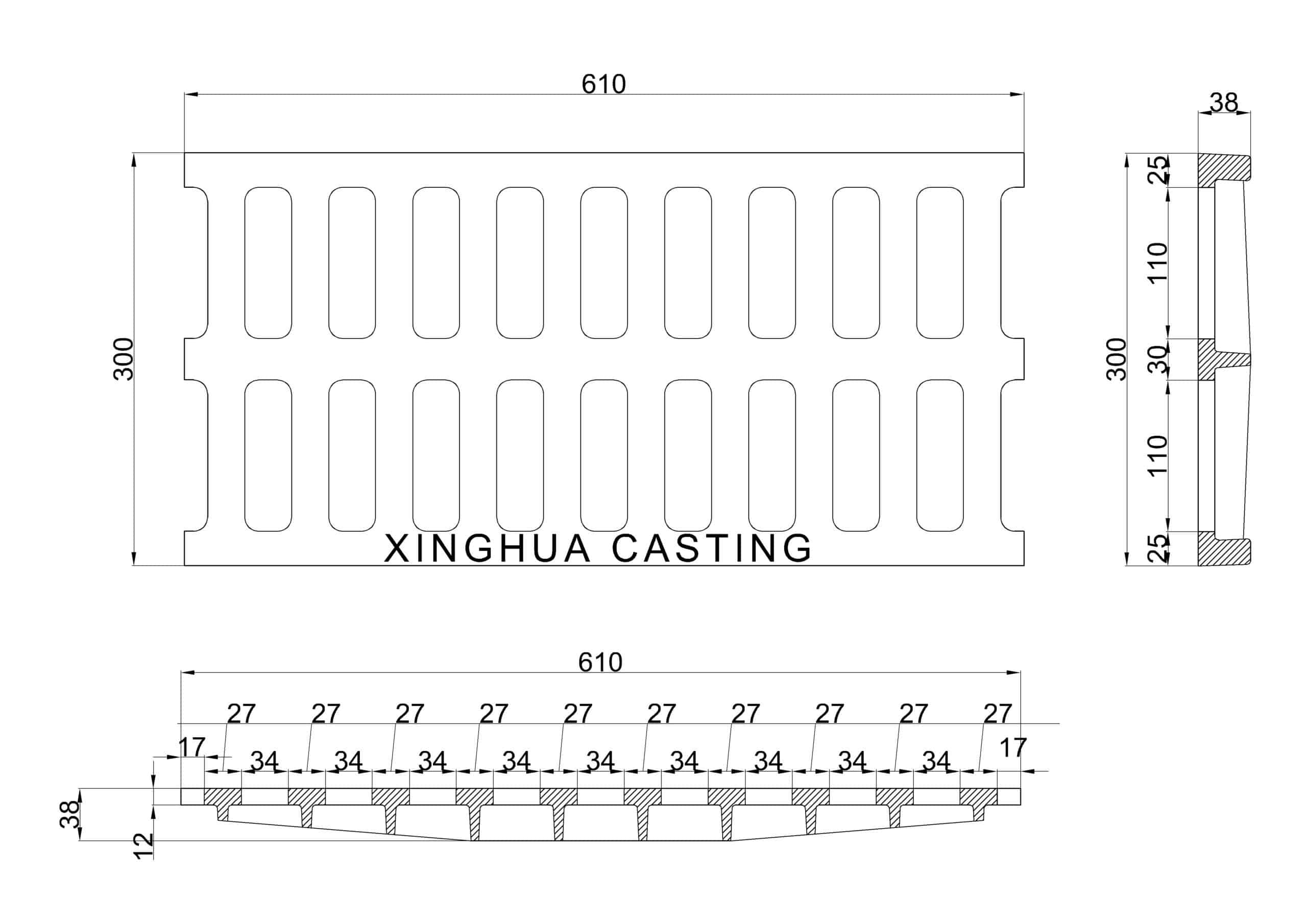

D400 Grates 610mm*305mm clear opening with 38mm depth
FEATURES:
- Manufactured to BS EN 124 class D400
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
- Customized logo and text
Applications | Heavily trafficked carriageways and commercial/industrial areas,Highway |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | D400 |
Grate Style | Bar, Flat |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 610mm x 305mm |
|---|---|
Grate Thickness | 38mm |
You need to log in to display our CAD file downloads.
