Φ600(mm) Square to Round Manhole Covers
Product Model：
XH SR62486 B/C
B125/C250 square to round manhole cover 800mm diameter clear opening with 75mm frame depth
FEATURES:
- Manufactured to BS EN 124 class B 125
- BSI Kitemarked for third party assurance of quality
- Suitable for slow moving traffic
- Full single seal gives airtight seal when filled with grease
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Badging e.g. FW, SW
- Safety Grids
- Moly Sealing Grease
|
Applications
|
Estate Roads, Delivery Areas, Car Parks, Driveway, Pavement
|
|---|---|
|
Accreditation
|
BS EN124-2:2015
|
|
Loading
|
B125/C250
|
|
Cover
|
Solid Top
|
|
Material
|
Ductile Iron
|
|
Frame Surface Protection By
|
black anticorrosive asphalt paint.
|
|

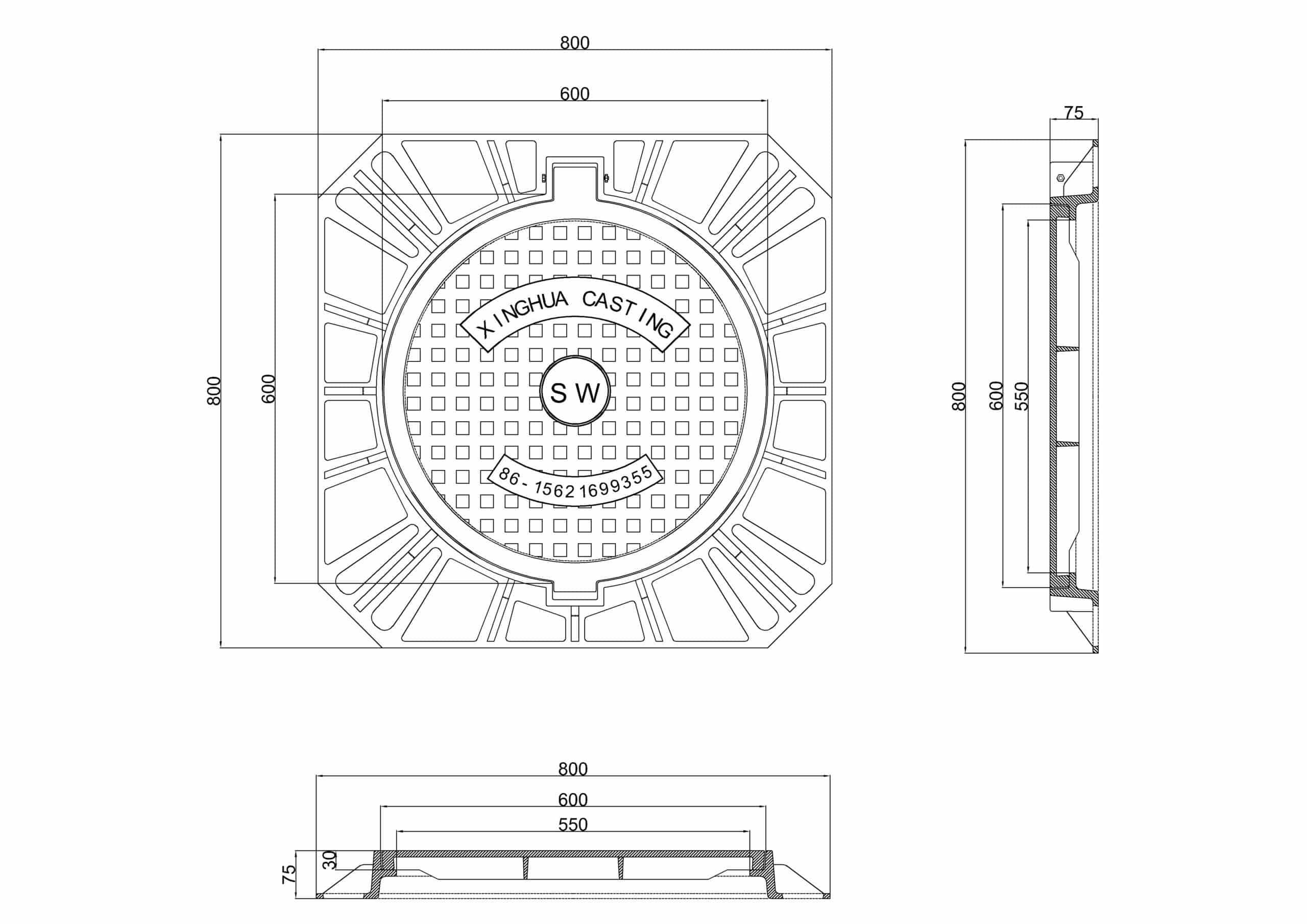

Internal Dimensions
|
600 (L) x 600 (W)
|
|---|---|
|
External Dimensions
|
800(L)×800(W)×75(D）
|
|
Clear Opening
|
600 x 600
|
|
Weight:
|
55Kg/68Kg
|
You need to log in to display our CAD file downloads.
