Φ820(mm)Round Manhole Cover,Tall Bolted,Storm Drain
Product Model：
XH RC20010
D400 circular/round manhole cover 820mm diameter clear opening with 125mm frame depth
FEATURES:
- Manufactured to BS EN 124 class D400
- BSI Kitemarked for third party assurance of quality
- Full single seal gives airtight seal when filled with grease
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Badging e.g. FW, SW
- Safety Grids
- Moly Sealing Grease
|
Applications
|
Heavily trafficked carriageways and commercial/industrial areas,Highway
|
|---|---|
|
Accreditation
|
BS EN124-2:2015
|
|
Loading
|
D400
|
|
Cover Style
|
Solid Top
|
|
Material
|
Ductile Iron
|
|
Coating
|
black anticorrosive asphalt paint
|
|

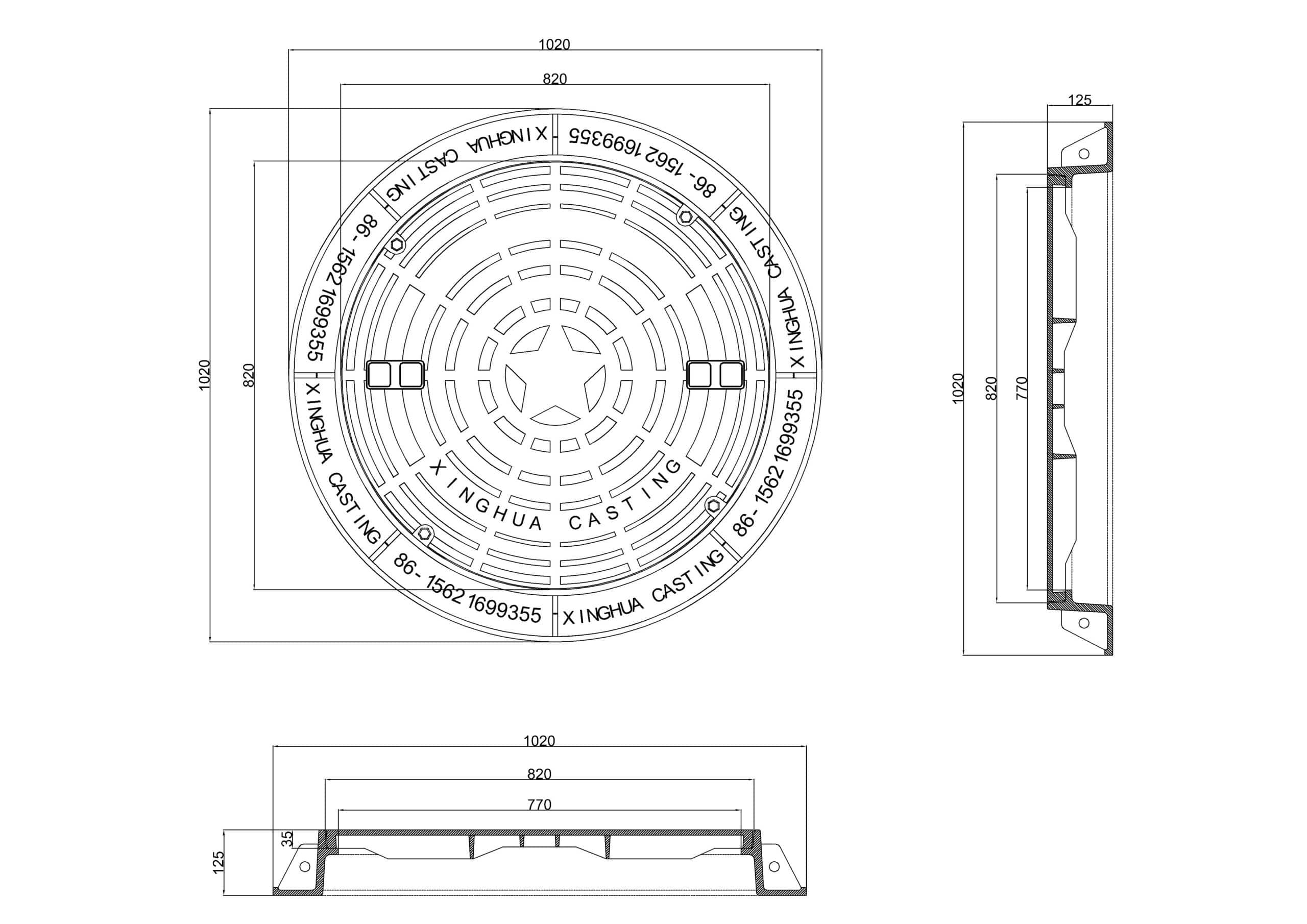

External Dimensions
|
Φ1020(mm)
|
|---|---|
|
Clear Opening
|
Φ820mm
|
|
Frame Depth
|
125mm
|
You need to log in to display our CAD file downloads.
