660*660(mm)Gully Grates,Hex Bolting
Product Model：
XH GG30008

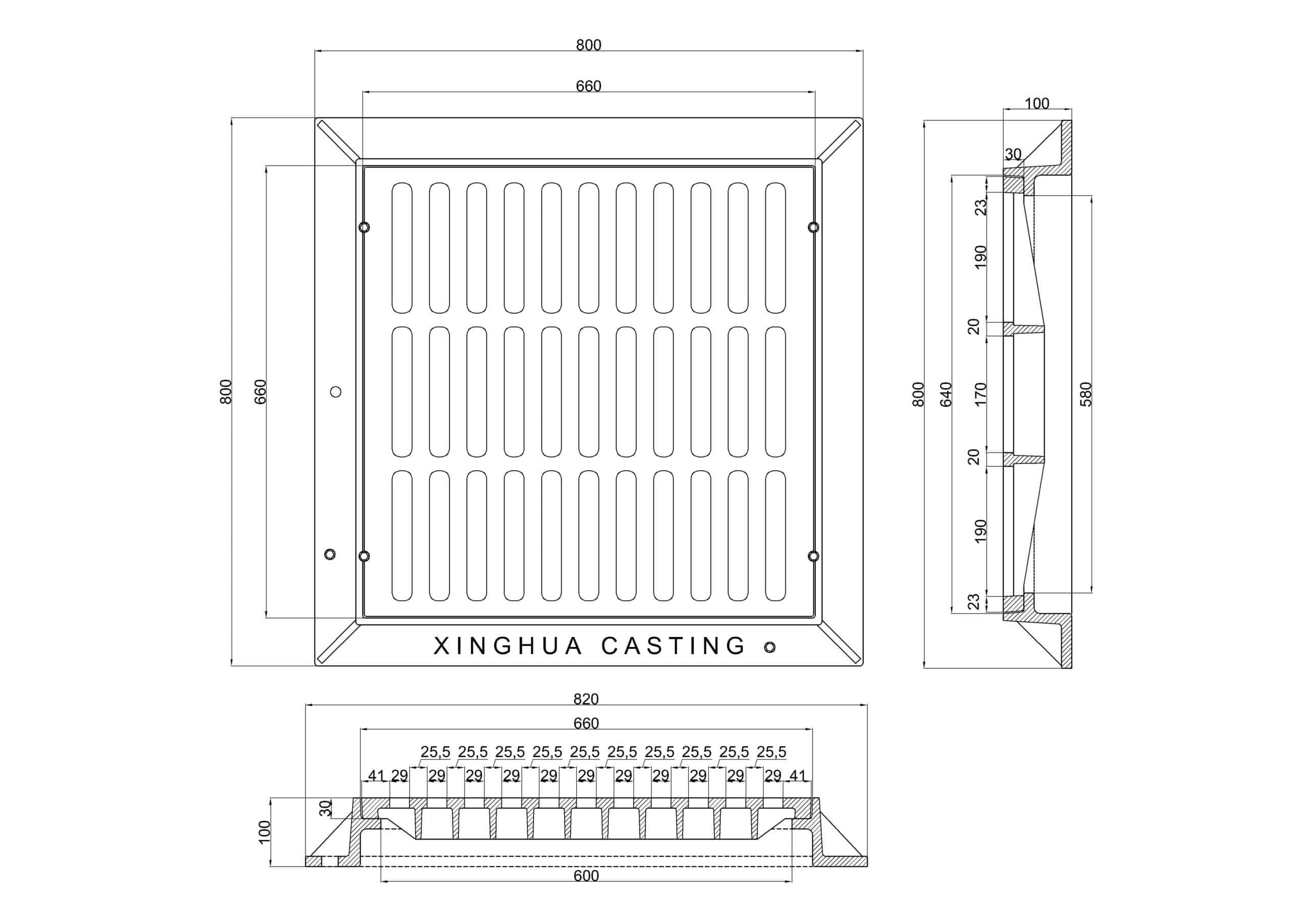

D400 Gully Grates 660mm*660mm clear opening with 100mm frame depth
FEATURES:
- Manufactured to BS EN 124 class D400
- Anti-theft design
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Customized logo and text
Applications | Heavily trafficked carriageways and commercial/industrial areas,Highway |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | D400 |
Grate Style | Bar, Flat |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 796mm x 796mm |
|---|---|
Clear Opening | 660mm x 660mm |
Frame Depth | 100mm |
You need to log in to display our CAD file downloads.
