600mm Round Manhole Cover
Product Model：
XH RC45627
C250 circular/round manhole cover 600/700/800mm diameter clear opening with 80/100/100mm frame depth
FEATURES:
- Manufactured to BS EN 124 class C250
- BSI Kitemarked for third party assurance of quality
- Suitable for slow moving traffic
- Full single seal gives airtight seal when filled with grease
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Badging e.g. FW, SW
- Safety Grids
- Moly Sealing Grease
Applications | Pavement, Car Parks |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | C250 |
Cover | Solid Top |
Material | Ductile Iron |
Frame Surface Protection By | black anticorrosive asphalt paint. |

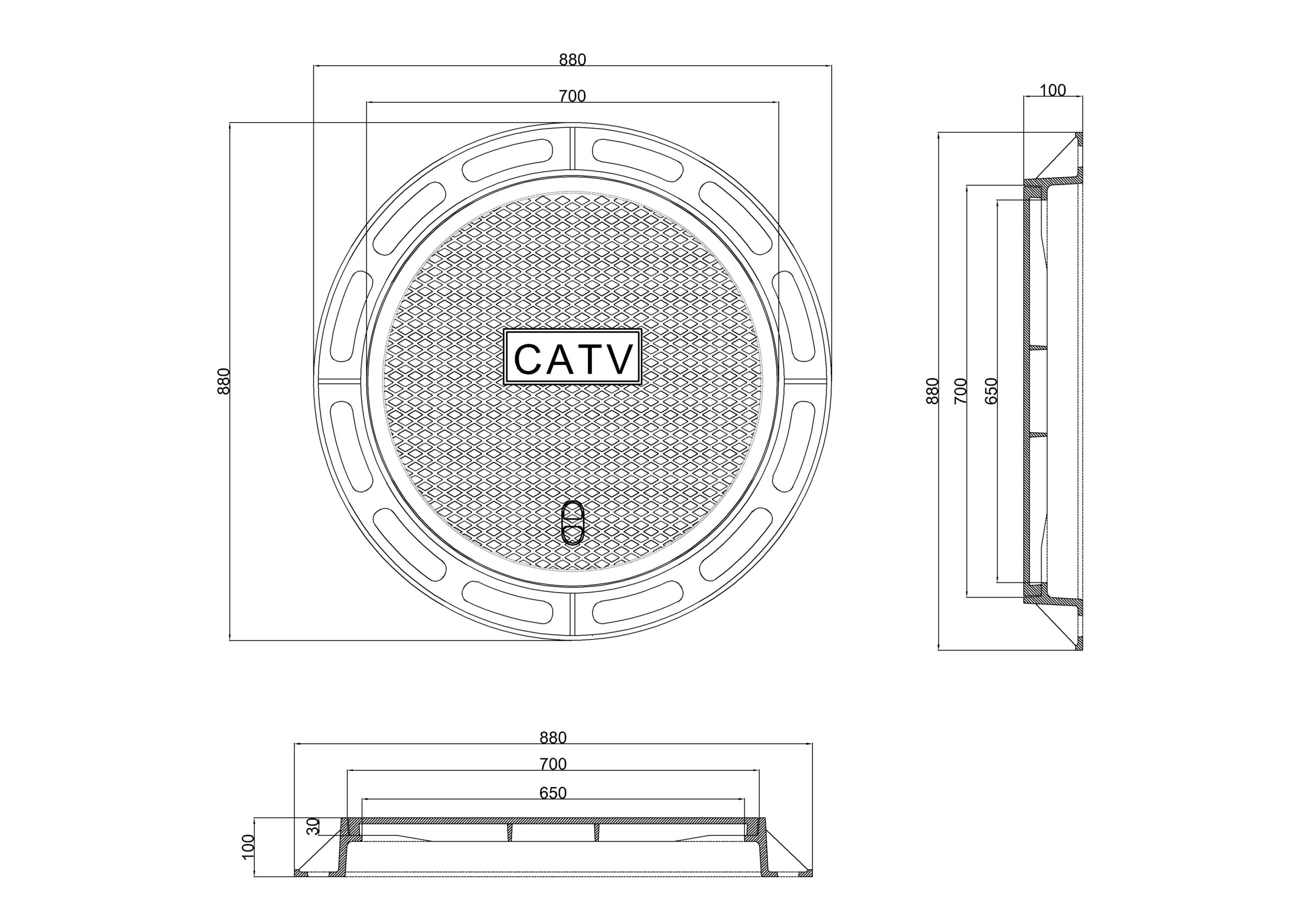

Internal Dimensions | Ø600 / Ø700 / Ø800 |
|---|---|
External Dimensions | Ø720 / Ø880 / Ø980 |
Clear Opening | Ø600 / Ø700 / Ø800 |
Frame depth | 80/100/100mm |
Weight: | 70/85/105Kg |
