590*610(mm)Cross Drainage Trench Grate,Heavy Duty
Product Model：
XH GG30034

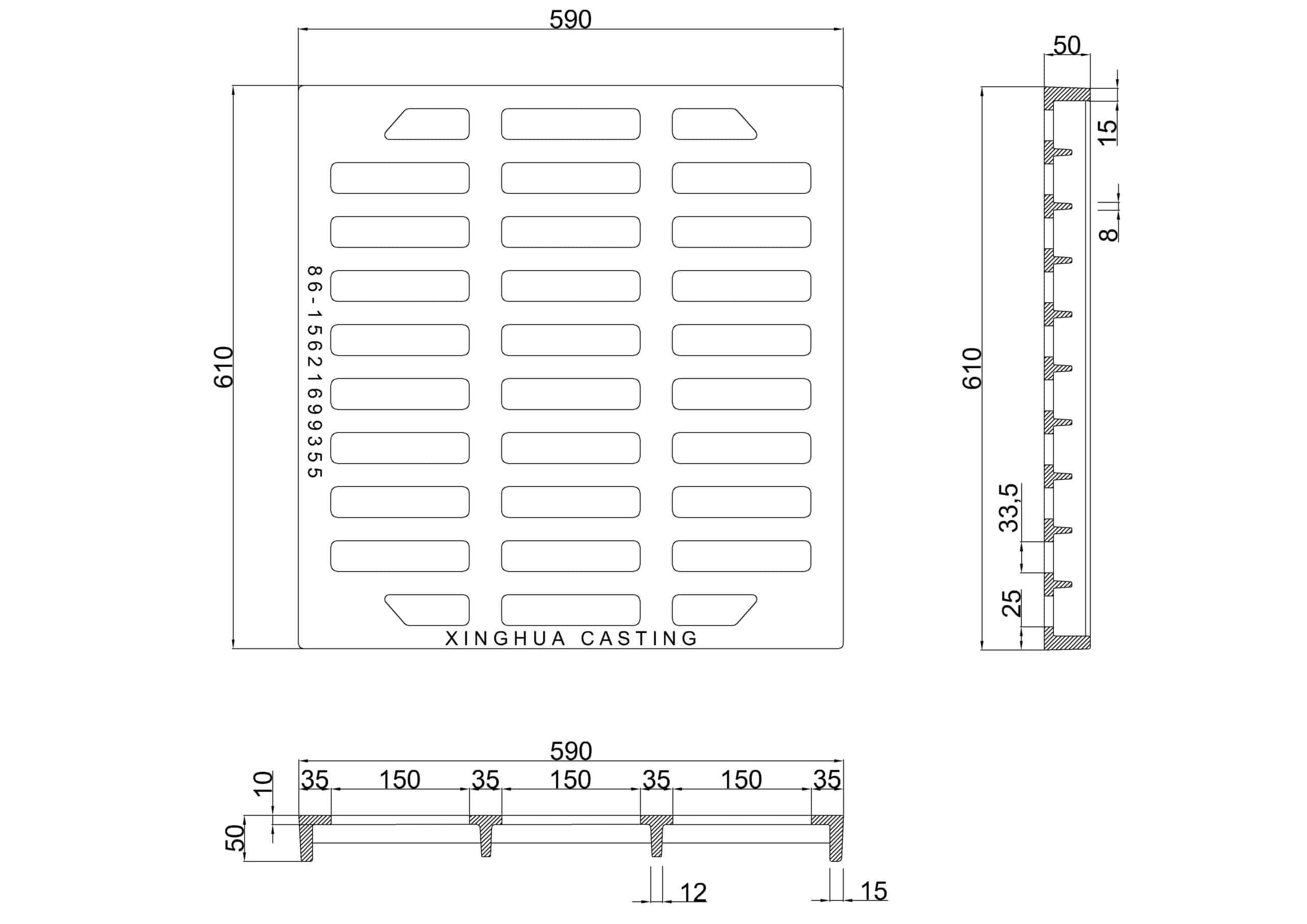

D400 Grates 590mm*610mm clear opening with 50mm depth
FEATURES:
- Manufactured to BS EN 124 class B 125
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
- Customized logo and text
|
Applications
|
Heavily trafficked carriageways and commercial/industrial areas, Highway
|
|---|---|
|
Accreditation
|
BS EN124-2:2015
|
|
Loading
|
D400
|
|
Grate Style
|
Bar, Flat
|
|
Material
|
Ductile Iron
|
|
Coating
|
black anticorrosive asphalt paint
|
|
External Dimensions
|
590mm x 610mm
|
|---|---|
|
Grate Thickness
|
50mm
|
You need to log in to display our CAD file downloads.
