670x 670(mm)Rectangular Manhole Cover&Frame,3 Point Suspension Covers
Product Model：
XH DT00003
D400 manhole cover 670mm* 670mm clear opening with 100mm frame depth
FEATURES:
- Manufactured to BS EN 124 class B 125
- BSI Kitemarked for third party assurance of quality
- Full single seal gives airtight seal when filled with grease
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Non-rock 3 point suspension covers
- Integral Lifting key Holes
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Badging e.g. FW, SW
- Safety Grids
- Moly Sealing Grease
|
Applications
|
Heavily trafficked carriageways and commercial/industrial areas, Highway
|
|---|---|
|
Accreditation
|
BS EN124-2:2015
|
|
Loading
|
D400
|
|
Cover Style
|
Double Triangular,Solid
|
|
Material
|
Ductile Iron
|
|
Coating
|
black anticorrosive asphalt paint
|
|

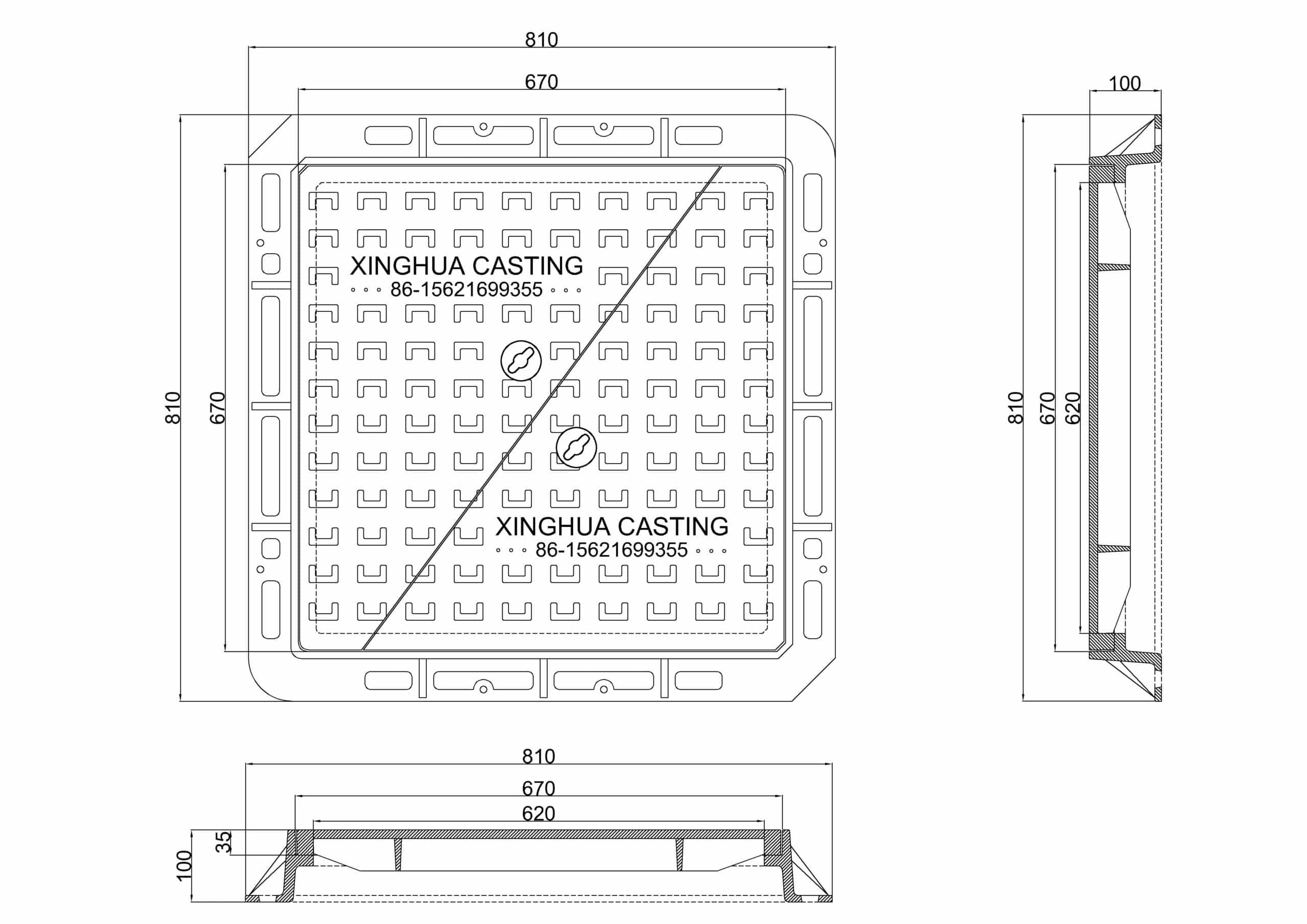

External Dimensions
|
810mm x 810mm
|
|---|---|
|
Clear Opening
|
670mm x 670mm
|
|
Frame Depth
|
100mm
|
|
Weight:
|
70Kg
|
You need to log in to display our CAD file downloads.
