700*700(mm)Sinusoidal Valley Grate,Black Asphaltic Coated
Product Model：
XH GG30021

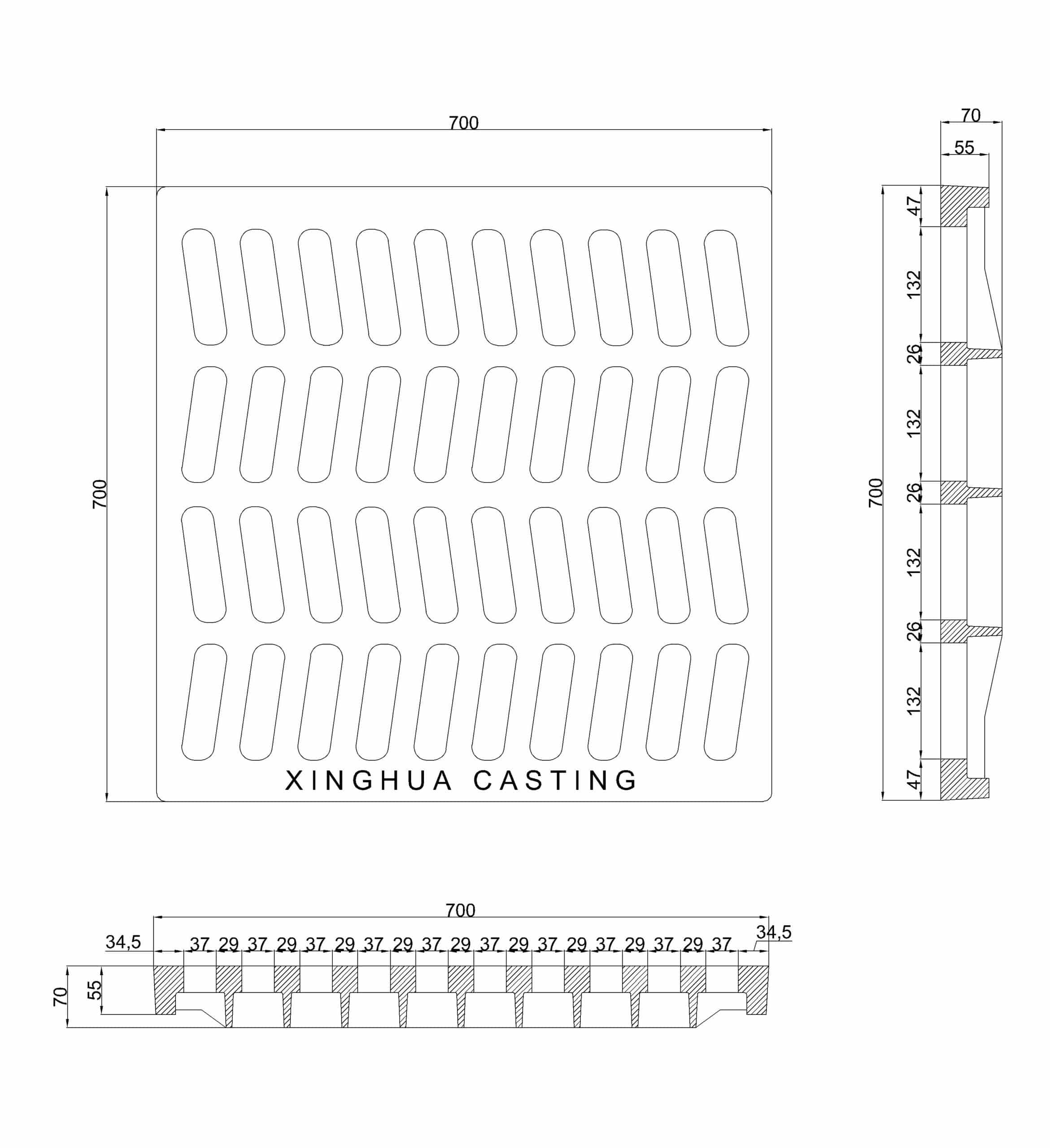

D400 Grates 700mm*700mm clear opening with 27mm depth
FEATURES:
- Manufactured to BS EN 124 class D400
- Anti-theft design
- Ductile iron to ISO 1083 for improved weight to strength ratio
- Black coated finish
OPTIONS:
- Standard Locking
- High Security Locking
- Customized logo and text
Applications | Heavily trafficked carriageways and commercial/industrial areas,Highway |
|---|---|
Accreditation | BS EN124-2:2015 |
Loading | D400 |
Material | Ductile Iron |
Coating | black anticorrosive asphalt paint |
External Dimensions | 700mm x 700mm |
|---|---|
Grate Thickness | 27mm |
You need to log in to display our CAD file downloads.
